Compact two way radio for on-site business and cost-effective communication
- IP54 rating water resistance & dust protection
- Multi-icons & tri-color LCD display
- Loud and clear audio
- 200 programmable channels
- 50 CTCSS tones & 214 DCS codes
- CALL key with 10 tones selectable
- High/low output power selectable
- Low battery alert
- Inbuilt VOX for hands-free communication
- 2 quick home channels recall
- Channels scan
- Battery save
- Emergency alarm
- Time-out timer
- Busy channel lock-out
- FM radio receiver 76 - 108MHz
- PC programmable
- Firmware upgradable

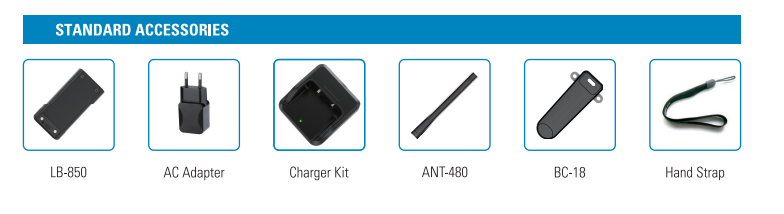

1pcs radio unit
1pcs rubber antenna
1pcs rechargeable Lithium-ion battery pack
1pcs AC adapter & rapid desktop charger kit
1pcs belt clip & hand strap
1pcs user’s manual
General
| Frequency |
VHF Version:136-174MHz UHF Version: 400-480MHz WFM: 87.5-108MHz |
| Channel Capacity |
200 Channels |
| Power Supply |
7.4V DC |
| Dimensions (without belt clip and antenna) |
98mm (H) x 55mm (W) x 30mm (D) |
| Weight (with battery and antenna) |
220g |
Transmitter
| RF Power |
≤5W(High) / 1W(Low) |
| Channel Spacing |
12.5 / 25kHz |
| Frequency Stability |
<1.5ppm |
| Modulation Deviation |
≤5kHz(Wide) / ≤2.5kHz(Narrow) |
| Spurious & Harmonics |
-36dBm<1GHz, -30dBm>1GHz |
| FM Hum & Noise |
65dB(Wide) / 55dB(Narrow) |
| Adjacent Channel Power |
70dBC(Wide) / 60dBC(Narrow) |
| Audio Frequency Response(Premphasis, 300 to 3000Hz) |
+1 ~ -3dB |
| Audio Distortion |
< 3% |
Receiver
| Sensitivity (12 dB SINAD) |
≤ 0.25μV(W) / ≤ 0.35μV(N) |
| Adjacent Channel Selectivity |
70dBC(W) / 60dBC (N) |
| Audio Distortion |
< 5% |
| Radiated Spurious Emissions |
<-54dBm |
| Intermodulation Rejection |
60dB |
| Audio Output |
500mW@16 ohms |
-
