Long range walkie talkie for outdoor adventures, camping, hiking
- Compact, lightweight but rugged design
- Wide LCD display with backlight
- 38 CTCSS tones & 83 DCS codes
- Buttons for the channel selection
- Knob for volume adjustment
- CALL key with 10 tones selectable
- High / low output power selection
- Built-in LED flashlight
- Squelch tail elimination
- VOX for hands-free communications
- Monitor, channel scan
- Keypad lock, roger beep, battery save
- Micro USB port to recharge the battery
- Kenwood K1 2 pin type accessory connector
- 99 programmable channels
- Frequency range: LPD 433MHz / PMR 446MHz / FRS 462MHz / 467MHz
- Output power: 0.5W / 2W switchable
- 1700mAh high capacity Li-ion battery
- Last up to 25 hours battery life
- Dimensions: 88H x 52W x 30D mm
- Weight with battery: 145g

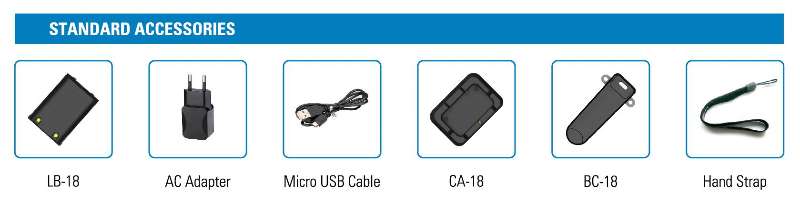

2 x FT-18 radios
2 x Li-ion battery packs LB-18
2 x AC adapters
2 x USB charging cables
2 x Desktop chargers CA-18
2 x Belt clips BC-18
2 x Hand straps
1 x User guide
General
| Frequency |
LPD: 433MHz / PMR: 446MHz |
FRS/GMRS: 462 – 467MHz |
| Channel Capacity |
99 channels |
|
| Power Supply |
3.7V DC |
|
| Dimensions (without belt clip and antenna) |
88mm (H) x 52mm (W) x 30mm (D) |
|
| Weight (with battery and antenna) |
145g |
|
Transmitter
| RF Power |
LPD/PMR: 500mW |
FRS: 500mW / GMRS: 2W |
| Channel Spacing |
12.5kHz |
|
| Frequency Stability (-30°C to +60°C) |
±1.5ppm |
|
| Modulation Deviation |
≤ 2.5kHz |
|
| Spurious & Harmonics |
-36dBm < 1GHz, -30dBm>1GHz |
|
| FM Hum & Noise |
-40dB |
|
| Adjacent Channel Power |
≥ 60dB |
|
| Audio Frequency Response(Premphasis, 300 to 3000Hz) |
+1 ~ -3dB |
|
| Audio Distortion@ 1000Hz, 60% Rated Max. Dev. |
< 5% |
|
Receiver
| Sensitivity (12 dB SINAD) |
≤ 0.25μV |
| Adjacent Channel Selectivity |
-60dB |
| Audio Distortion |
< 5% |
| Radiated Spurious Emissions |
-54dBm |
| Intermodulation Rejection |
-70dB |
| Audio Output @ < 5% Distortion |
1W |
-
SAMCOM FT-18 Data Sheet -
SAMCOM FT-18 User Guide
